Ring Battery Replacement Guide by The Mad Maker 1227

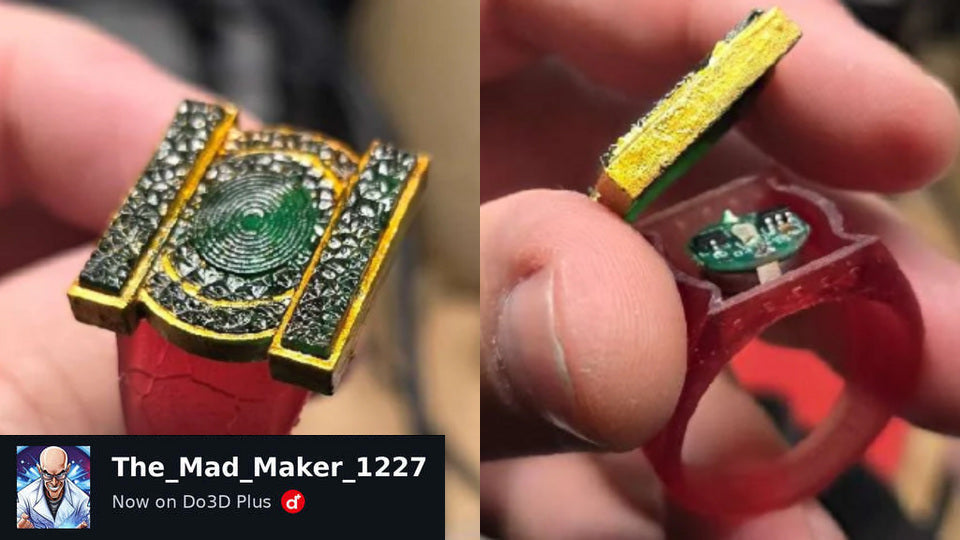

Closed and opened Mad Maker ring with The Mad Maker 1227 and Do3D Plus branding

Written by: The_Mad_Maker_1227

Thank you for your purchase and we appreciate that you chose us over the sea of other makers out there in the world. I never set out to make mass production products and I still don’t. Each piece is an individual work of art that was carefully crafted with curiosity, passion, and drive to see what a hobbyist could do. By your purchase, you also share this passion and I thank you.

Ring Care:

Do not submerge or get wet by hand washing. The electronics are not waterproof. Failing to do so will likely result in product failure. To clean use a damp cloth and wipe gently.

Battery Replacement:

At some point, the battery will run out, or the diode could eventually go bad. When it does, don’t despair. It can all be changed easily enough.

The adhesive used is B-7000 multipurpose adhesive which is good for jewelry and other applications that are strong enough to hold, but gentle enough to remove in the event you need maintenance. I’ve also used E-8000 and even hot glue in a bind (hot glue is not my recommended application).

Figure 1: B-7000 Adhesive
Figure 1: B-7000 Adhesive

The red band is for illustrative purposes, you bought my metal bands, and I need to make more. The adhesive used is B-7000 multipurpose adhesive.

Figure 2: Get a good grip on your ring.
Figure 2: Get a good grip on your ring.

With your other hand, gently lift the stone until the adhesive is released from the band. You’ll now see the diode chipset.

Figure 3: Diode Chipset
Figure 3: Diode Chipset

The Chipset is gently pressure-fit into the hole and secured with small dabs of B-7000 on the top and bottom of the unit. Push the chipset out, and now you can slide the battery out of the housing. An excess dried glue can be easily pulled off the band and chipset (if it doesn’t come off during the removal).

If the chip set ever goes bad, replacements can be found online:

1Pc LED Light Microwave Magnetic Control Switch Lighting Chip Animation Hand To Do Plus Light Model Toy Wireless Lamp - AliExpress 13

Figure 4: LED Light Microwave Magnetic Control Switch Lighting Chip Animation Hand To Do Plus Light Model Toy Wireless Lamp
Figure 4: LED Light Microwave Magnetic Control Switch Lighting Chip Animation Hand To Do Plus Light Model Toy Wireless Lamp

The unit uses CR927 3V battery. These can be found online as well.

Figure 5: CR927 3V Battery
Figure 5: CR927 3V Battery

Next Step: Place the chipset back in the ring. The hole has already been routed out to fit tightly on the battery housing of the chipset. Gently push the unit back into the hole to achieve a snug fit.

Figure 6: Back in it goes!!!
Figure 6: Back in it goes!!!

Apply a thin layer of B-7000 along the entire border of the ring edge.

Figure 7: Application of adhesive.
Figure 7: Application of adhesive.

Now set the stone on top of the ring band on top of where you applied the adhesive. I usually activate the led to line up the led to the desired location.

Figure 8: Resetting the stone.
Figure 8: Resetting the stone.

Then apply some gentle pressure to ensure the two surfaces allow the adhesive to properly spread between them. And allow the ring to sit and cure for 24 hours before use.

Figure 9: Gentle Pressure
Figure 9: Gentle Pressure

After 24 hours…Your ring is ready for action. Enjoy and thank you again.

CONSUMER WARNING & LIABILITY DISCLAIMER

PLEASE READ CAREFULLY BEFORE USE

By purchasing or using this toy prop ring ("Product"), you ("User" or "Purchaser") acknowledge and agree to the terms set forth below:

1. Prop / Toy Classification

This product is designed and intended solely as a costume accessory, toy, or prop for theatrical, dress-up, or decorative purposes. It is not fine jewelry, precious metal, or real gemstone material, nor is it rated or intended for medical, safety, functional, or heavy daily use.

2. Choking Hazard & Small Parts Warning

  • WARNING: CHOKING HAZARD – Small parts.
  • This product is not intended for children under 3 years of age (or appropriate age limit depending on design). Keep out of reach of infants and toddlers.

3. Proper Use & Material Safety

  • Skin Sensitivity: This product may contain synthetic materials, base metals, resins, plastics, or surface coatings. Discontinue use immediately if skin irritation, redness, rash, or allergic reaction occurs.
  • Non-Ingestible: Do not place the ring or any of its components in the mouth.
  • Sharp Edges / Impact: Avoid wearing this product during physical sports, sleeping, swimming, or operating machinery to prevent accidental injury, snagging, or breakage.

4. Limitation of Liability

To the maximum extent permitted by applicable law, the manufacturer, distributor, and seller shall not be liable for any direct, indirect, incidental, punitive, or consequential damages, injuries, or losses arising out of or in connection with the misuse, modification, or improper handling of this product.

5. Assumption of Risk

By opening, retaining, or using this product, the consumer assumes all risks associated with its use and agrees to supervise minors during play or costume use.

Credit: The_Mad_Maker_1227
